PROJECT REQUIREMENTS:
The customer requested gas oil pumping to the daily service tanks of the normal operation power generator units.
Solution adopted by INPRO

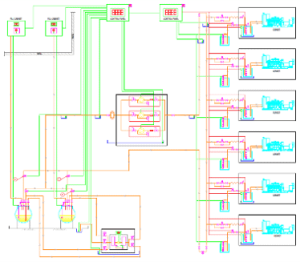

The complete installation consists of two different fuel supply systems for the gensets, controlled by a PLC. The whole installation has two main storage tanks.
The genset ring pipeline suck fuel from these two main storages. The installation is composed of a double pump unit as well and four electric generators with their corresponding daily tanks with the safety devices and their return single pump units.
EQUIPMENT
- Main tank control: EDM-40 probe with display
- Leaks detection: DDP-25 interstitial chamber detector & LMW
- Pump system: 3 x fuel pump FP 200 GE ATEX
- 1 x fuel polishing system SAFA
- Solenoid valves: control the filling process

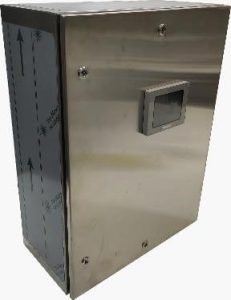

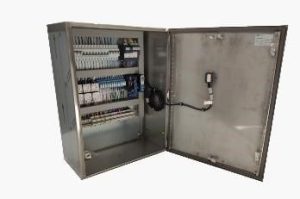

- PLC control system
- Collector tray with leak detector
- Pressure and Level switches SMMR
- Flow meter and Pressure reducing valve
