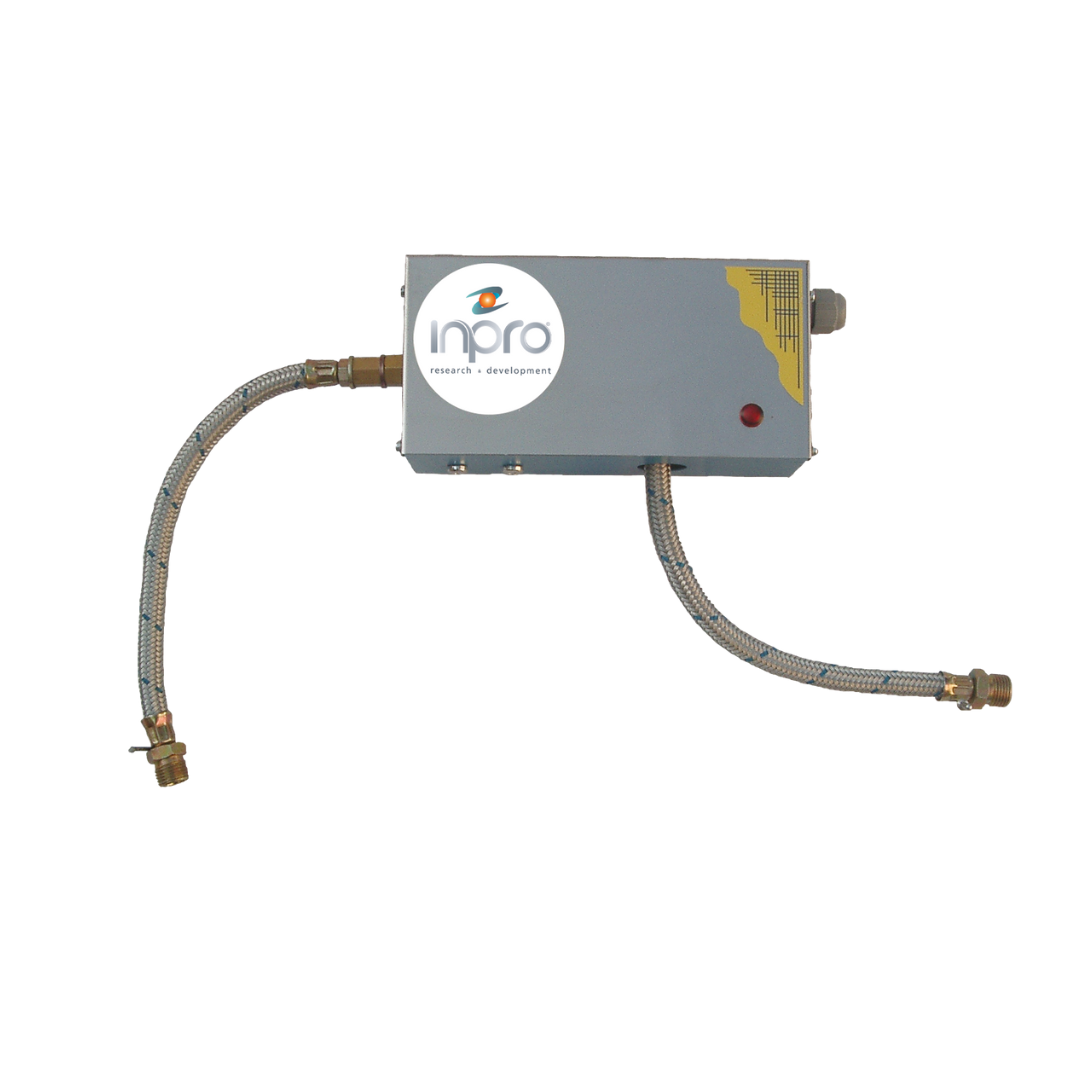

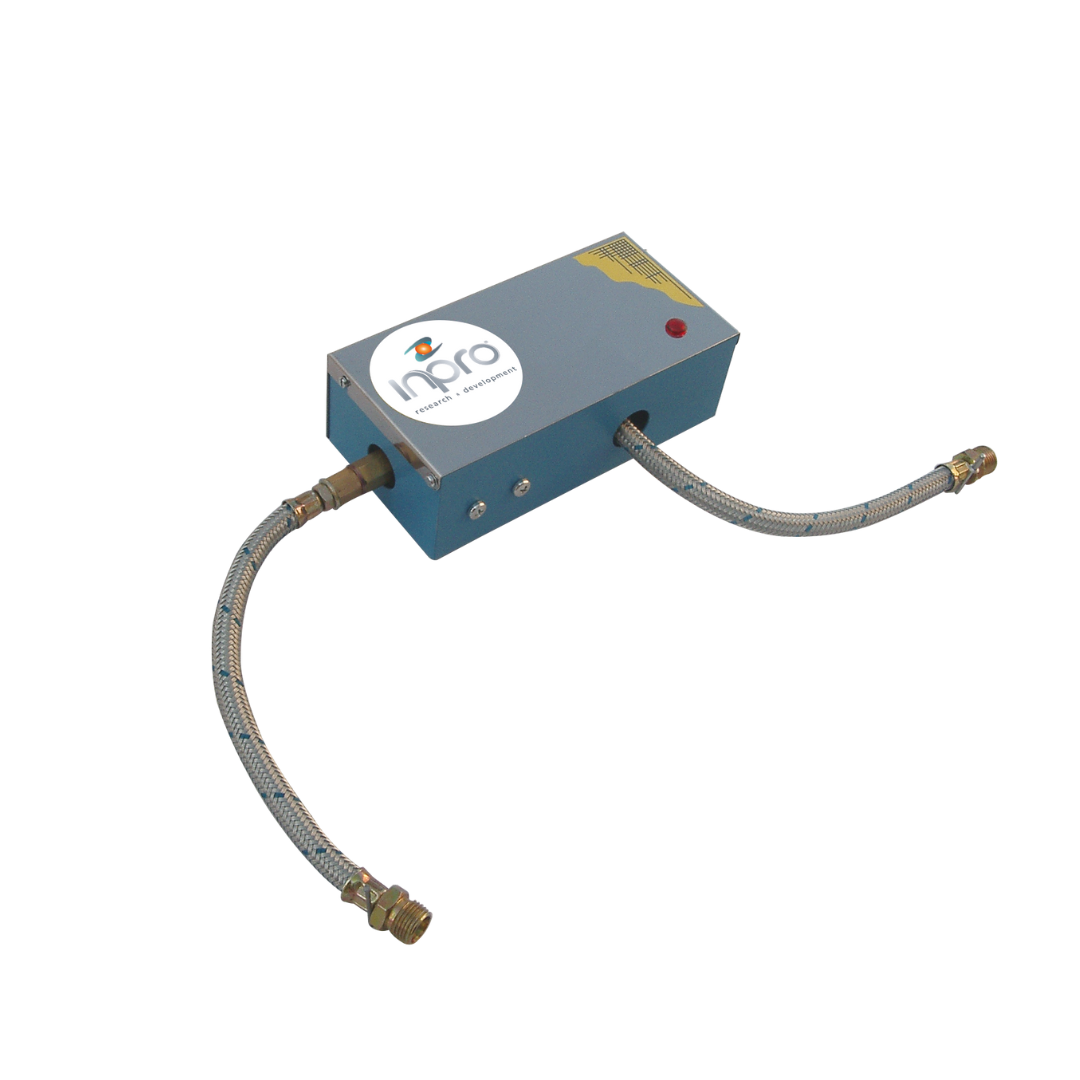

GP Microdomestic
Domestic oil lift pump, designed to supply diesel or kerosene to small heating appliances when a higher than normal lift is required -for example
oil tank situated up to 15 metres lower than the burner-, and do not require more than17 l/h oil.
The MICRODOMESTIC is electrically connected to the burner, and comes into operation only when the appliance requires oil.
| MAX. FLOW RATE | 17 lts/h |
|---|---|
| MAX. SUCTION HEIGHT | 3 m. |
| MAX. DRIVE PRESSURE | 15 m. (1,5 kg/cm2) |
| POWER SUPPLY | 230 V 50 Hz |
| POWER CONSUMPTION | 18 W |
| INLET AND OUTLET CONNECTION | 8 mm. |
