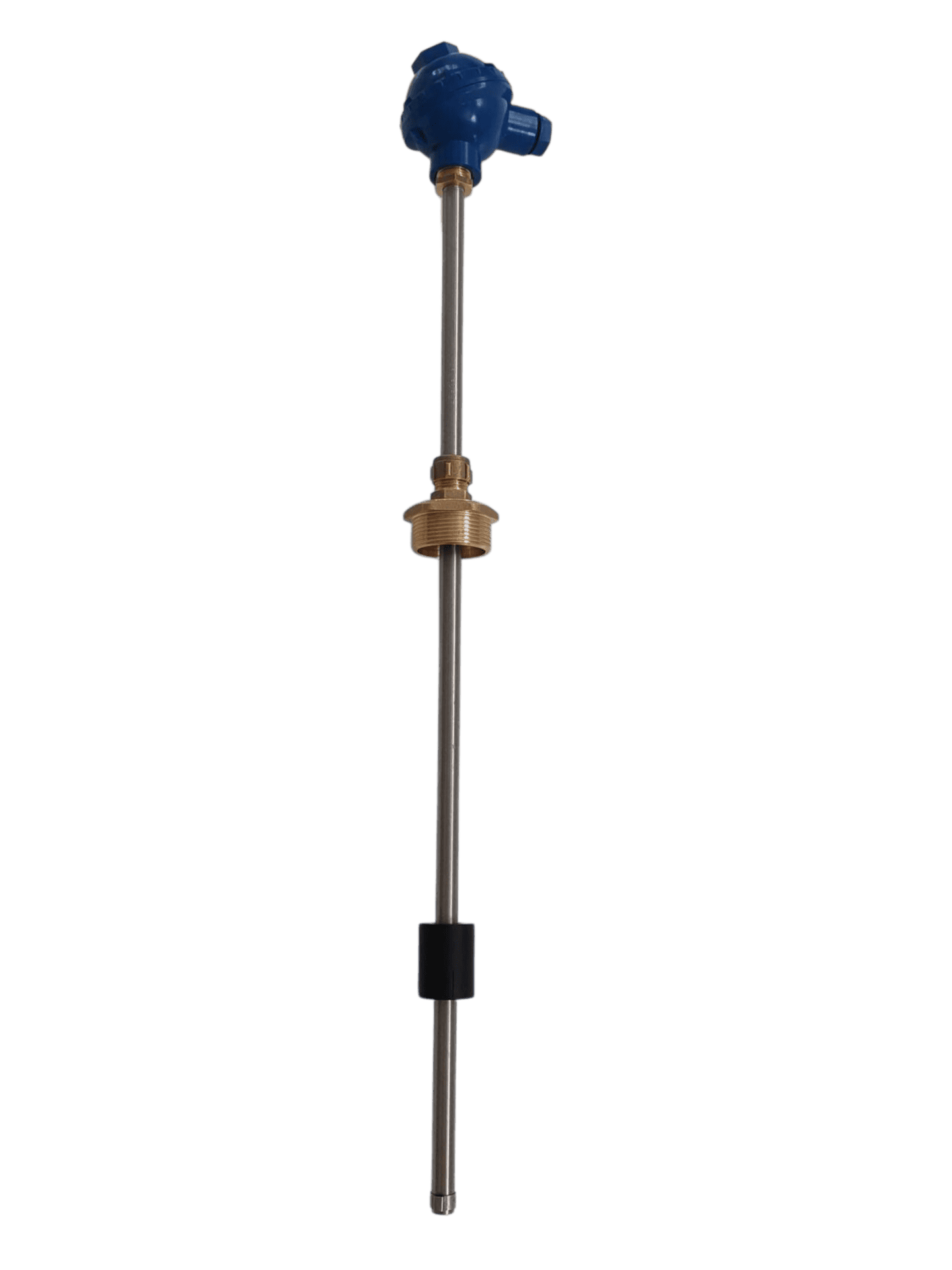

ECR-25-50
Adjustable level switch and float switch magnetoresistive principle
- Shows on its display the contents of a tank in liters or percentages. Suitable for almost all oils, liquids or fluids. Up to 60°C.
- With a basic default setting for 2 relay outputs, installation is extremely easy and flexible.
- The probe height is adjustable to the exact tank height.
- Relay switching point adjustable
- The display is OFF in Eco mode unless an alarm threshold is exceeded (or a button is pressed).
- Standard housing 96 x 48 mm (1/8 DIN) for panel mounting.
- Standard connector
- For ECR25 = 1"
- For ECR50 = 1 1/2"
- Available with 1 1/4", 1 1/2" and 2" threaded adapters
| ECR Display ECR Probe | |
| Protection rate: IP 65 | Probe head connection: 1" or 1 ½” BSP |
| Power consumption (display and probe) <3W | Ingress Protection: IP 65 |
| Standard power supply: 18-265 Vac/dc | Size (mm): 450 x 100 x 80 mm (ECR 25 1" BSP) |
| Optional outputs: 2 relays (standar) | 750 x 100 x 80 mm (ECR 50 1 1/2" BSP) |
| and 4 relays (optional) | Other optional connection threads: 11/4", 11/2" & 2" |
| Operation Temperature: 0º to 50ºC | Max temperature: 60ºC |
| Material: PC-ABS | Standard probe: AISI-316 stainless steel |
Conformity declarations and standards:
|
|
See Post about New product launch. ECR-25-50 – Adjustable level switch
