CAG

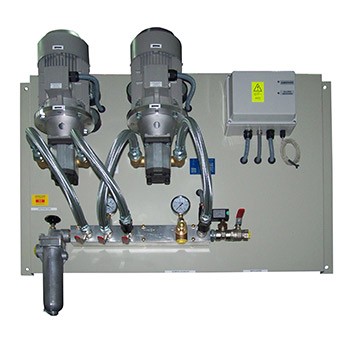

Oil Transfer to Daily Tanks Pressure Units - CAG

TECHNICAL FEATURES

• CAG and CAG + Control Cabinet for Multiple Backup Power Generators.
• CAG bespoke monitoring panels provide pumps and tank monitoring control panel for multiple storage and day tank fuel transfer monitoring and control.
• CAG has voltage free contacts connectivity to BMS.
• CAG+ has Modbus connectivity programmable PLC and touchscreen.

Description

The INPRO CAG+ Control Cabinet for Multiple Backup Power Generators is the perfect complement to INPRO transfer systems for diesel fuel ATAM-GET. The INPRO CAG+ Control Cabinet for Multiple Backup Power Generators is the perfect complement to INPRO transfer systems for diesel fuel ATAM-GET. Its main component is a PLC controller with multiple analogue / digital inputs and outputs which can be defined for each installation, allowing the ideal safety and reliability operation at each specific installation such as:

• Storage Tank Level Control.
• Generator Tank Level Control.
• Duplex Pump s Control.
• Fuel Filtration / Polishing control.
• Motor Starter and Overload Protection for motors.
• Flow meter.
• Leak detection.
• Pressure drop sensors at filter.
• Integration with other controllers and BMS Systems Ethernet or Mod bus.

Other design optional features:

• Redundant relay principle to void automatic controller action at different redundant safety critical points at the installation.
• Dual Power Source Feed single-phase or 230/480 VAC – 3 Phase.
• Dual Control Power Transformer.
• Pump Motor Starters with Manual Disconnect and Overload Protection.
• Power Monitoring and Reporting for Control Circuit Breakers and Motor starters.
