CAG and CAG + Control Cabinet for Multiple Backup Power Generators.

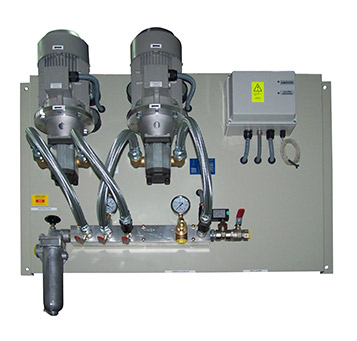

The INPRO CAG+ Control Cabinet for Multiple Backup Power Generators is the perfect complement to INPRO transfer systems for diesel fuel ATAM-GET, providing precise and safe control in operations involving multiple generators.
The INPRO CAG+ is an advanced system that enables the monitoring and control of motor pumps, solenoid valves, and other essential components in multi-generator supply processes. With a state-of-the-art programmable controller, this control panel efficiently manages tank levels, ensuring both the safety and performance of your installation.
Its multiple analogue / digital inputs and outputs which can be defined for each installation, allowing the ideal safety and reliability operation at each specific installation such as:
-
Storage Tank Level Control (EDM 4-digits display)
-
Generator Tank Level control (SR level )switch lamps and contacts)
-
Duplex Pump/ s Control (optional)
-
Fuel filtration / Polishing control (optional)
-
Motor Starter and Overload Protection for motors (optional)
-
Flow meter (optional)
-
Leak detection (optional)
-
Presure drop sensors at filtrer (optional)
-
Integration with other controllers and BMS Systems through dry relay outputs and analog contacts
Main Features of the CAG+ with Mod-Bus Communication
-
Control of Motor Pumps and Solenoid Valves: Manages filling, overflow, and transfer motor pumps, as well as solenoid valves and alarms.
-
Redundant Safety: Includes safety relays to bypass the controller in case of critical failures, protecting the most sensitive points of the installation.
-
Level Control: Monitors levels in both main and daily tanks, ensuring a constant and efficient supply.
-
Filling Options: Allows for manual, automatic, and maintenance test fillings, optimizing system operability.
-
Touch Screen: Equipped with a 5.7” monochrome touchscreen for clear visualization of the installation status. Customizable options include a color screen and TCP/IP communication for SCADA system integration via Mod-Bus.
Other design optional features:
-
Redundant relay principle to void automatic controller action at different redundant safety critical points at the installation.
-
Dual Power Source Feed single-phase or 230/480 VAC – 3 Phase.
-
Dual Control Power Transformer.
-
Pump Motor Starters with Manual Disconnect and Overload Protection.
-
Power Monitoring and Reporting for Control Circuit Breakers and Motor starters.
Versión: PANEL DE CONTROL DE COMBUSTIBLE CAG DE 1 (O N) DEPÓSITO(S) PRINCIPAL(ES) A 1 (O N) DEPÓSITO(S) DIURNO(S)
Conectividad de contactos sin tensión
Advantages of the CAG+ Control Cabinet for Multiple Backup Power Generators for an Installation
Increased safety
Thanks to the duplicity of relays and the precise control of all components, the total safety of the installation is guaranteed, minimizing the risk of failure.
Operational efficiency
CAG+ optimizes the operation of motor pumps and solenoid valves, avoiding interruptions in the supply of hydrocarbons and guaranteeing total control of the reservoirs.
Simplified maintenance
Automatic maintenance tests and a user-friendly interface allow operators to keep the installation in optimal condition with ease.
Technical characteristics of the CAG+ CONTROL CABINET FOR MULTIPLE BACKUP POWER GENERATORS
-
Filling zones: The system can control between 1, 2 or 3 filling zones, depending on the required configuration.
-
Visualization and control: It offers real-time monitoring of tank levels, motor pump and solenoid valve status, providing the possibility to perform maintenance tests to ensure that the system is always operational.
-
Flexible interface: Can be customized with a color display and different communication options (Mod-Bus and TCP-IP) to suit specific project requirements.

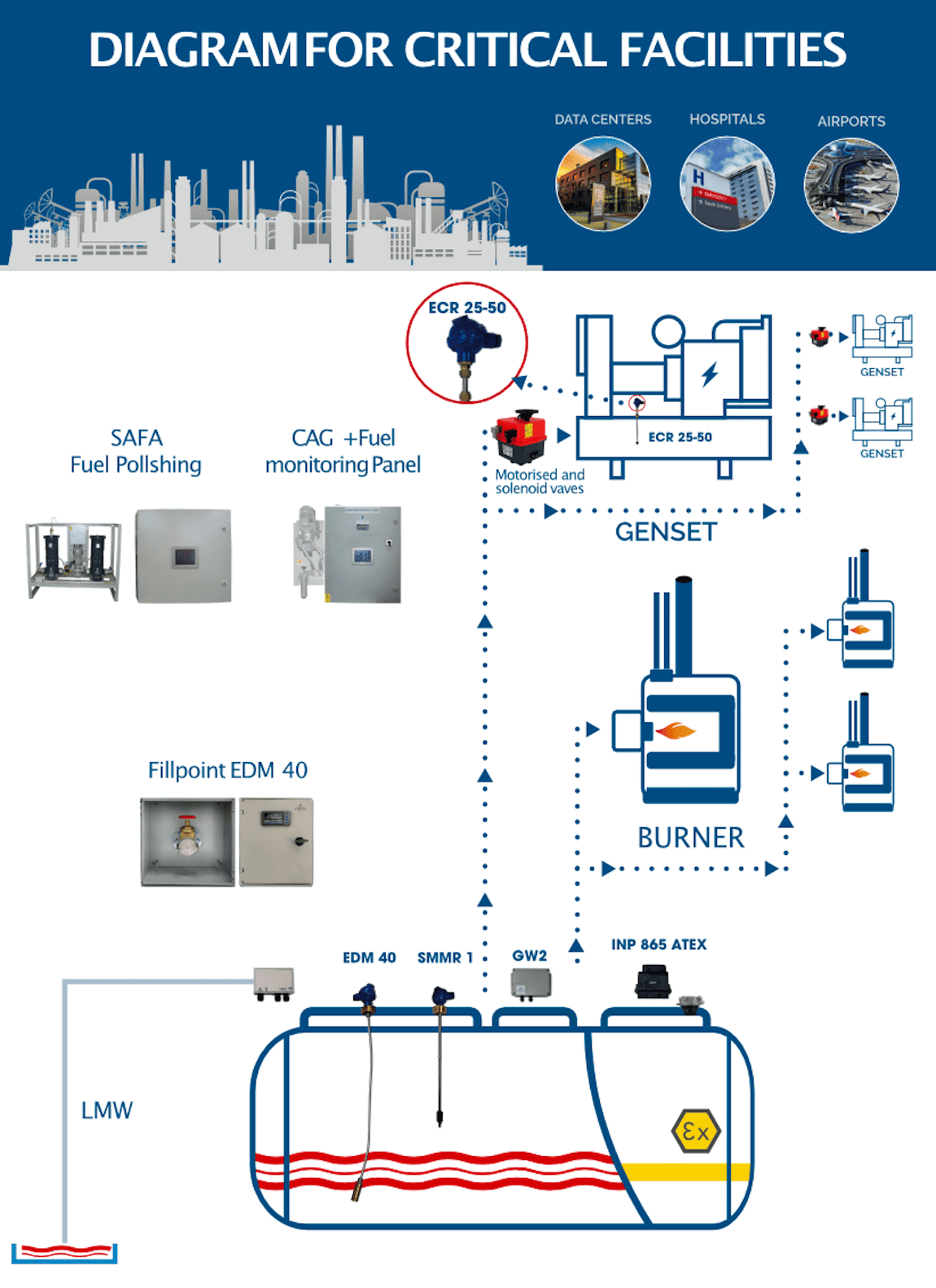

CAG+ operation in critical installations
In this guide you can see how the Inpro product range works in critical installations. Such as our diesel and HVO transfer units for powering generators and measurement and control systems, which are used in backup installations (power backup/reserve) in data centers, hospitals or airports.
If power outages are not an option for your facility and you want more than a controlled shutdown of your critical systems during power outages, INPRO has used its extensive experience to develop an uninterruptible diesel power supply system for emergency generators to ensure a continuous supply of power.
For more information about our CAG+ product
If you have any questions or need more information about our products and offers you can contact us through the following form. We will be happy to help you.
